Our youtube channel gives us the opportunity to share more information with our fellow researches through simulation result movies, Here we collect a Gallery of some of those movies for interested peoples.

Project Gallery Menu

  • Internal wave field during a tidal flow over a sloping topography


    CFD Lab gallery

    Go for movies ...

  • Shear instabilities, internal waves and stratified turbulence in a continuously stratified fluid
    CFD Lab gallery

    Go for movies ...

  • The turbulent wake behind a bluff body in a stratified fluid

    CFD Lab gallery

    Go for movies ...



Project 1


Internal wave field during a tidal flow over a sloping topography

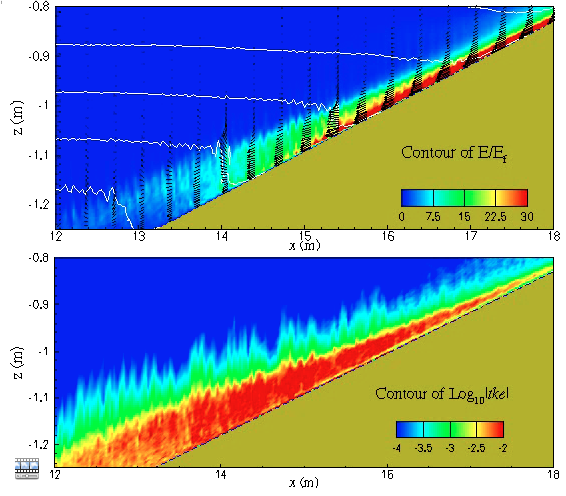

  • Turbulent field along with boundary layer flow


    Evoluation of TKE field

    This movie shows the evoluation of turbulent field along with boundary layer flow
  • Wave steepening and counter rotating streamwise vortex


    Wave steepening

    We look at Wave steepening and counter rotating streamwise vortex.

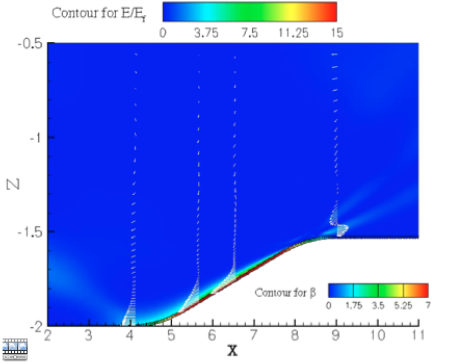

  • Internal tide field


    Internal tide field

    Movie shows the of time evolution of spanwise averaged kinetic energy E/Ef normalized by baropropic energy amplitude Ef.
Top

Project 2


Shear instabilities, internal waves and stratified turbulence in a continuously stratified fluid

  • An Equatorial Undercurrent model


    An Equatorial Undercurrent model

    Simulation of an Equatorial Undercurrent model shows the genaration of near-N oscillations and bursts of deep-cycle turbulence.

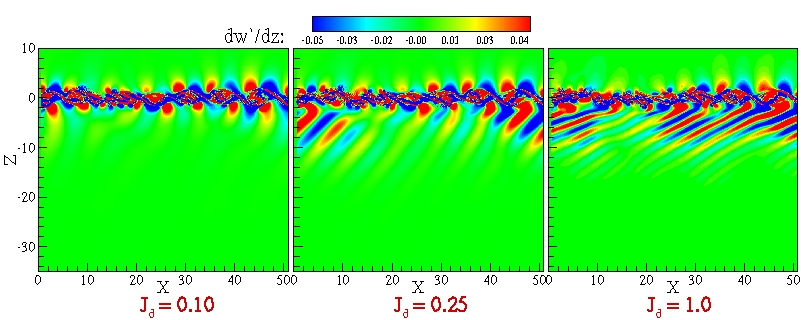

  • Internal tide field


    Internal wave field

    Simulations of internal waves generated by a Kelvin-Helmholtz shear instability. The movie shows the time evolution of vertical fluctuating strain rate dw'/dz for three different stratification levels. The stratification level Jd increases from left to right. See Pham et al. JFM 2009 for details.

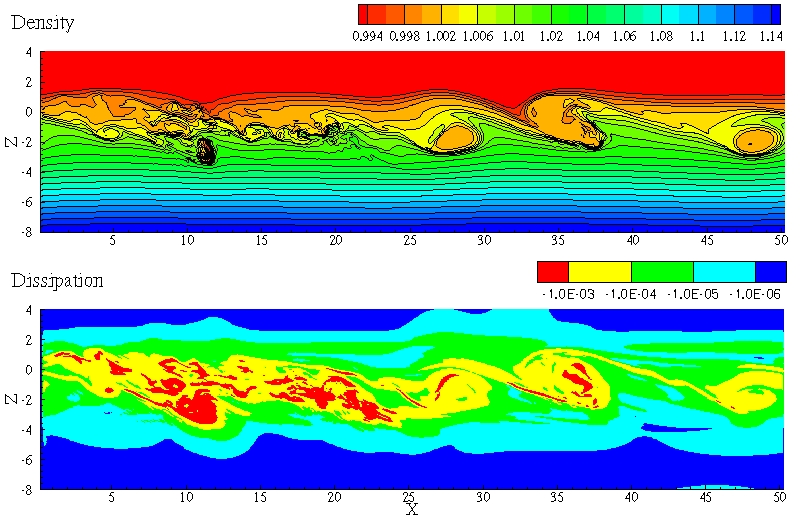

  • Deepening of a surface mixed layer driven by wind, surface cooling and background shear: density


    Deepening of a surface mixed layer

    Simulation of the deepening a surface mixed layer with wind stress and surface cooling into a continuously stratified region with shear.
  • Deepening of a surface mixed layer driven by wind, surface cooling and background shear: dissipation


    Turbulent mixing during the deepening of a surface mixed layer

    Simulation of the deepening a surface mixed layer with wind stress and surface cooling into a continuously stratified region with shear.
  • Ejection of horseshoe vortices


    Ejection of horseshoe vortices

    Spanwise vortices associated with Kelvin-Helmholtz billows are ejected away from a shear layer and stretched into horseshoe configuration by an external jet shear. See Pham & Sarkar JFM 2010 for details.
  • Turbulent mixing in a stable stratifed jet


    Turbulent mixing in a stratified jet

    Simulation of Kelvin-Helmholtz instability in an unstable shear layer with Rig less than 0.25 on top of a stable jet with Rig greater than 0.25. See Pham & Sarkar JFM 2010 for details.

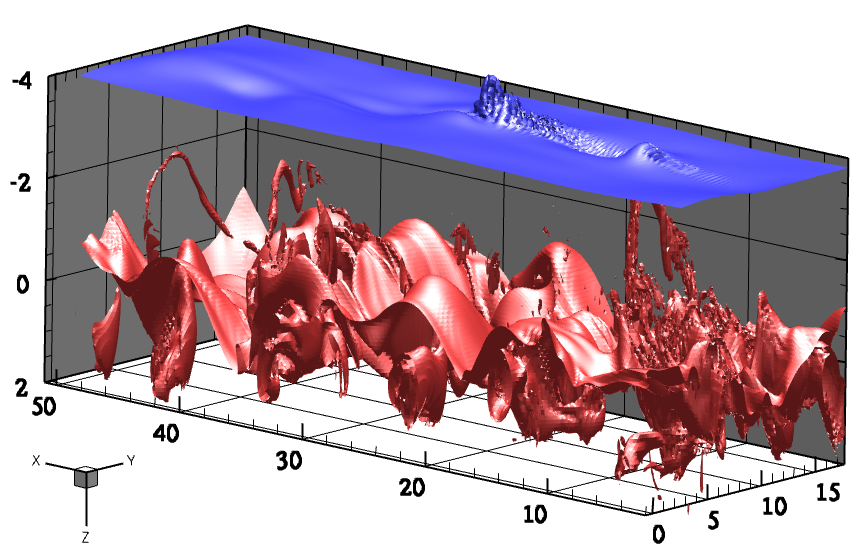

  • Isopycnal oscillations and ejection of horseshoe vortices in an EUC model


    Horshoe vortices in an Equatorial Undercurrent model

    Oscillations in the isopycnals are caused by the growth of Holmboe instability at the surface mixed layer. Horseshoe vortices originated from the surface mixed layer are stretched by the EUC shear and generate localized burst of turbulence.
Top

Project 3


The turbulent wake behind a bluff body in a stratified fluid

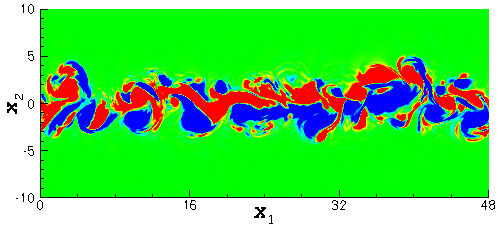

  • Vertical vorticity for a propelled wake



    omg3 vorticity for excess momentum propelled wake

    This movie shows the evolution of the vertical vorticity at the vertical centerplane, x3=0, in the wake of a self-propelled body with excess momentum in a stratified fluid. The simulation was performed using direct numerical simulation (DNS) with a Reynolds number of 25,000, a Froude number of 3, and a Prandtl number of 1.
  • Vertical vorticity for a propelled wake at intermediate Fr


    omg3 vorticity for excess momentum propelled wake at Fr=20

    This movie shows the evolution of the vertical vorticity at the vertical centerplane, x3=0, in the wake of a self-propelled body with excess momentum in a stratified fluid. The simulation was performed using direct numerical simulation (DNS) with a Reynolds number of 10,000, a Froude number of 20, and a Prandtl number of 1.
  • The wake behind a 2D circular cylinder


    2D cylinder wake

    his movie shows the vorticity field behind a circular cylinder at a Reynolds number of 500. Note that this simulation is 2D and was performed using the solver cgins in Overture which uses overlapping grids for handling complex geometry. The simulation was performed using direct numerical simulation (DNS) with a Reynolds number of 500, no density stratification, and a Prandtl number of 1.

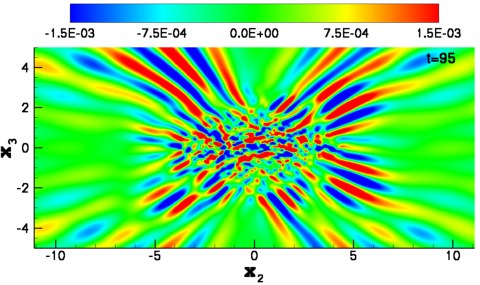

  • Internal waves visualized using horizontal divergence for a propelled wake


    horizontal divergence field for excess momentum propelled wake

    This image shows the horizontal divergence field, dw/dz, for a propelled vehicle with excess momentum in a stratified fluid. The simulation was performed using direct numerical simulation (DNS) with a Reynolds number of 10,000, a Froude number of 3, and a Prandtl number of 1.
